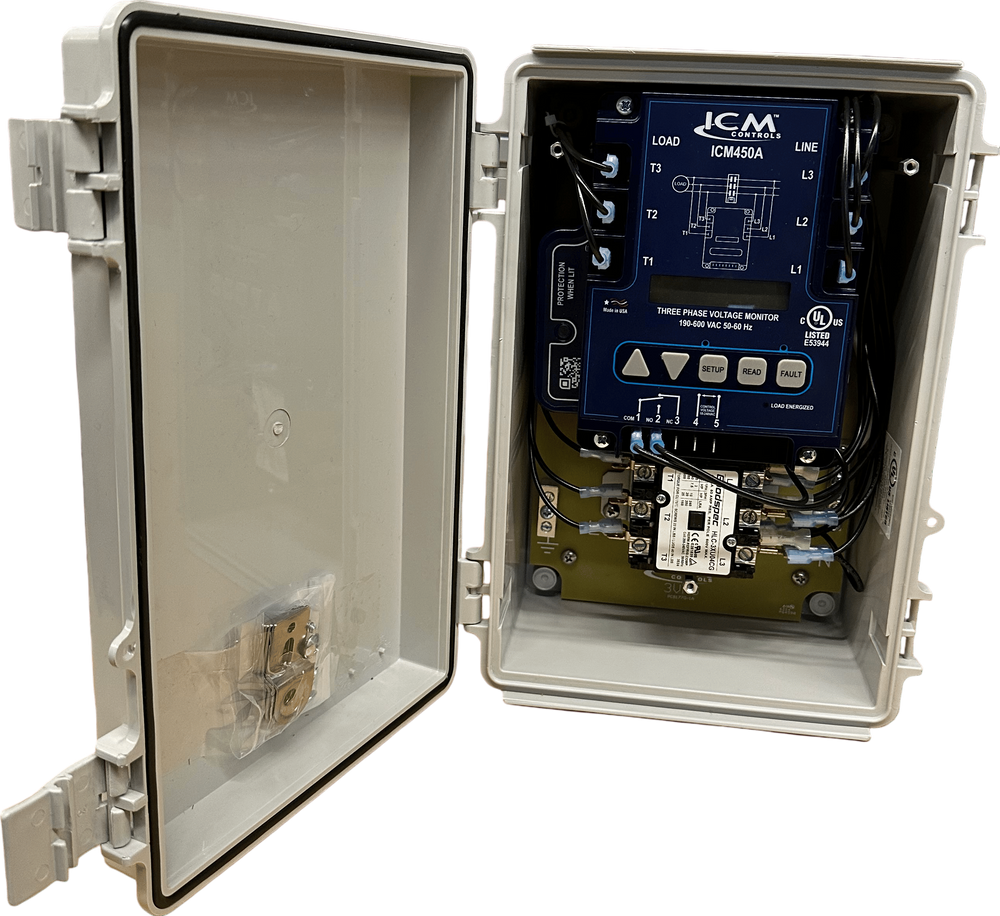

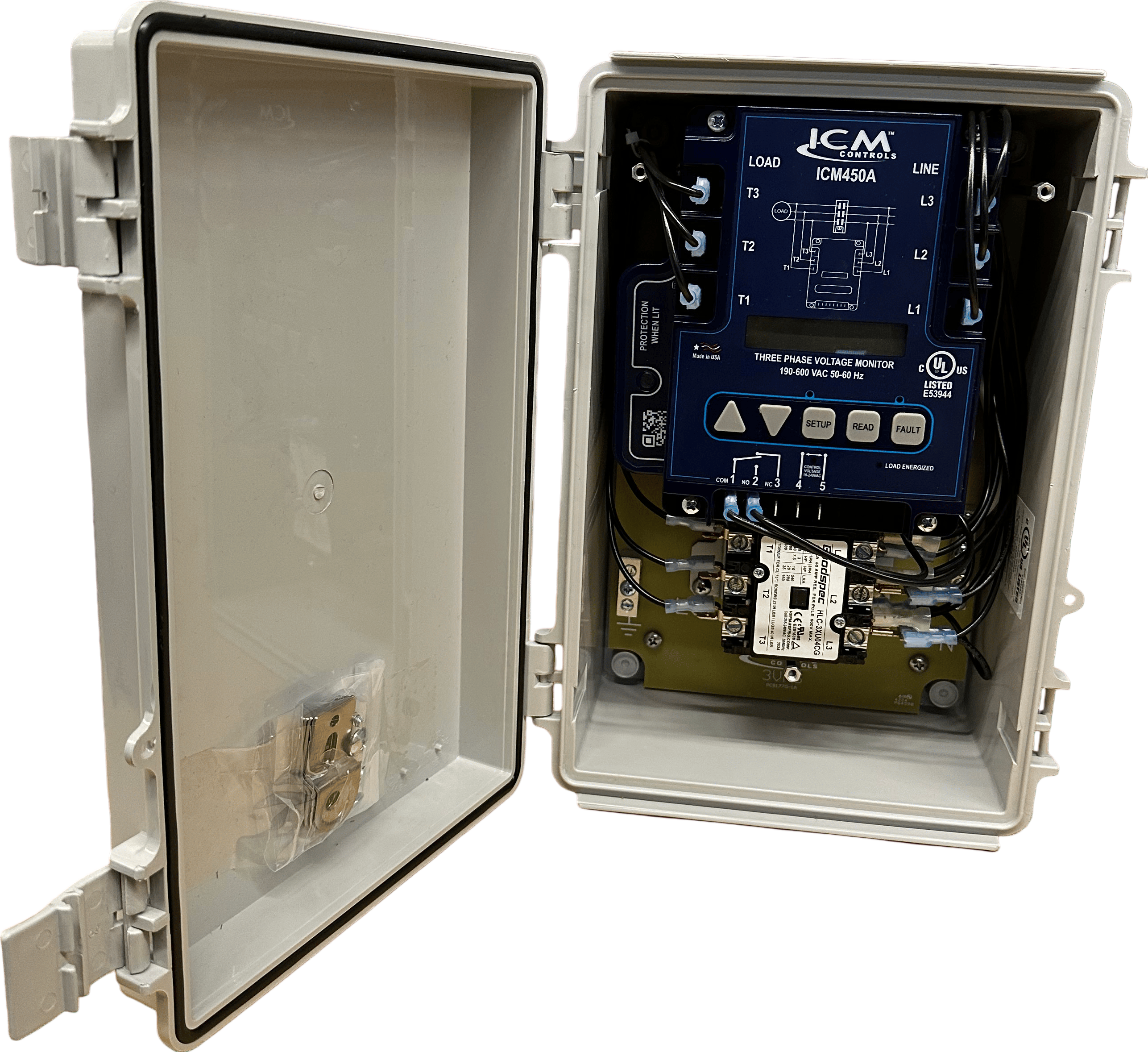

ICM Controls 3VMS 3-Phase Surge Protector and Voltage Monitor New
Product Overview
The 3VMS combines the benefits of the ICM450A programmable 3-phase line voltage monitor and a ICM530 type 1 and type 2 three-phase Surge Protective Device into one easy to install solution. The 3VMS protects against both power surges and over/under voltage issues that can cause damage to circuit boards and motors in residential and commercial three-phase 208/240 VAC HVAC/R equipment.
Brand new in box
Limited lifetime product warranty
Ships from TX
Authorized ICM Controls dealer
Features
- All components are pre-wired for 208/240 volts
- Modular design with field replaceable components
- Field programmable voltage monitor with backlit LCD display and a large fault history
- Protects against over and under voltage, phase loss, phase reversal, phase unbalance and rapid short cycling
- Separate 40amp contactor, fully disconnects from the service
- Superior TMOV technology provides safe and reliable surge protection, up to 150 kA max surge event
- Built to withstand the high impact of a major surge event
- NEMA type 4X Rating
- UL Listed: ICM450A UL file number E53944
- UL Listed: ICM530 UL file number E347279
Specifications
| Model | 3VMS |
| Maximum Surge Current | 150,000 amps |
| Protection Modes | L-L, L-N (L-N protection available only when Neutral is connected) |
| User Adjustable Settings | |
| Voltage Set Point | 208/240 VAC (do not set above 240VAC) |
| Delay on Fault | 0-15 seconds |
| Percent Unbalance | 2% - 20% (do not set above 10%) |
| Anti-Short Cycle Time Delay | 15 sec to 10 min |
| Over/Under Voltage Setting | 2-25% (do not set above 5% when voltage set point is 240VAC) |
| Inputs | |
| Line Voltage | 208/240 VAC |
| Frequency | 50/60 Hz |
| Outputs | |
| Type | Relay, SPDT |
| 2-Pole Contact Ratings | 40A, 208/240 VAC |
| Dimensions | 7.97" x 5.18" x 11.95" |
Package Contents
ICM Controls 3VMS 3-Phase Surge Protector and Voltage Monitor
Installation Manual
Warranty
This item comes with a limited lifetime product warranty.
