ICM Controls Sentry 3N1 Disconnect with Internal Voltage Monitoring and Surge Protection New
Product Overview

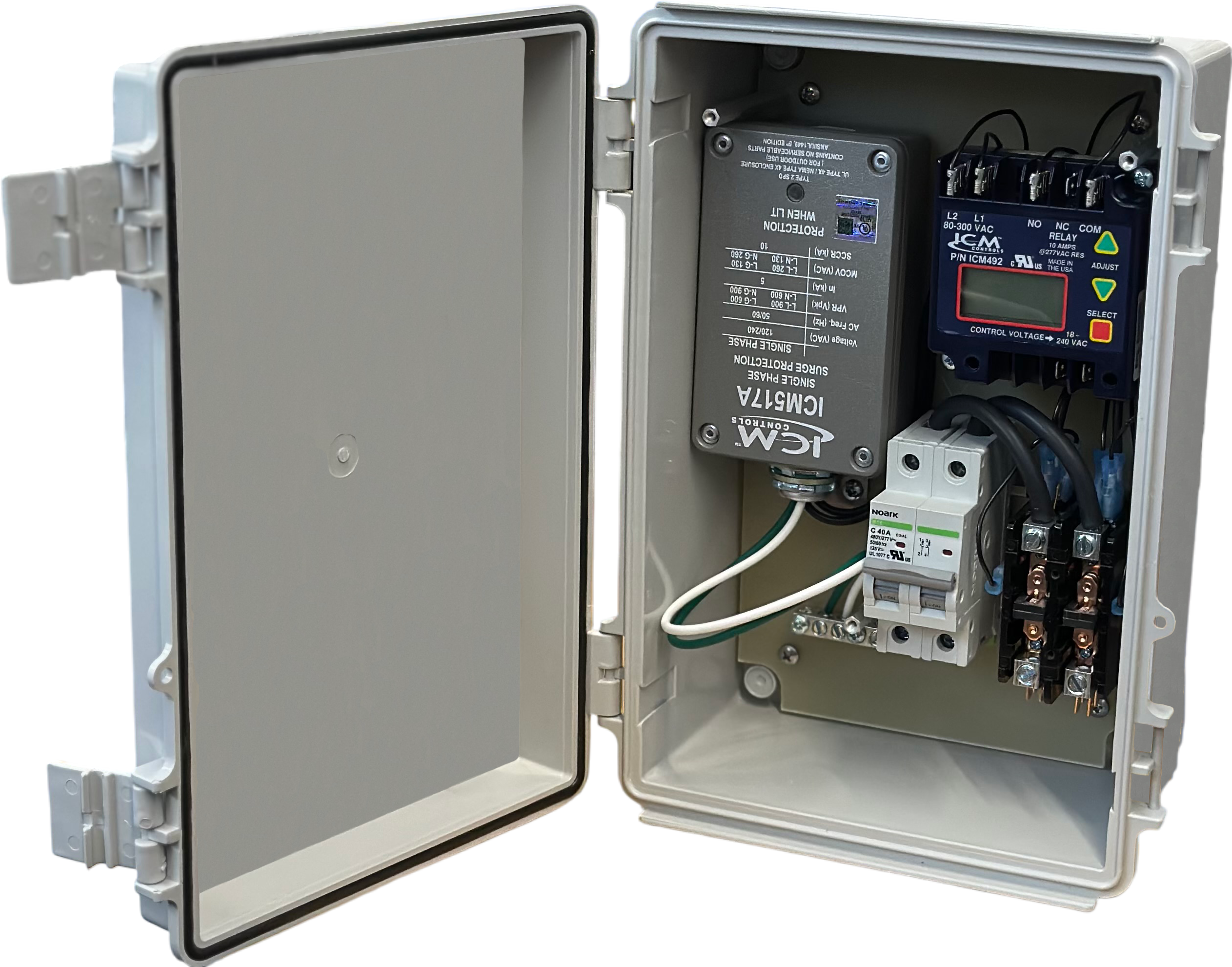

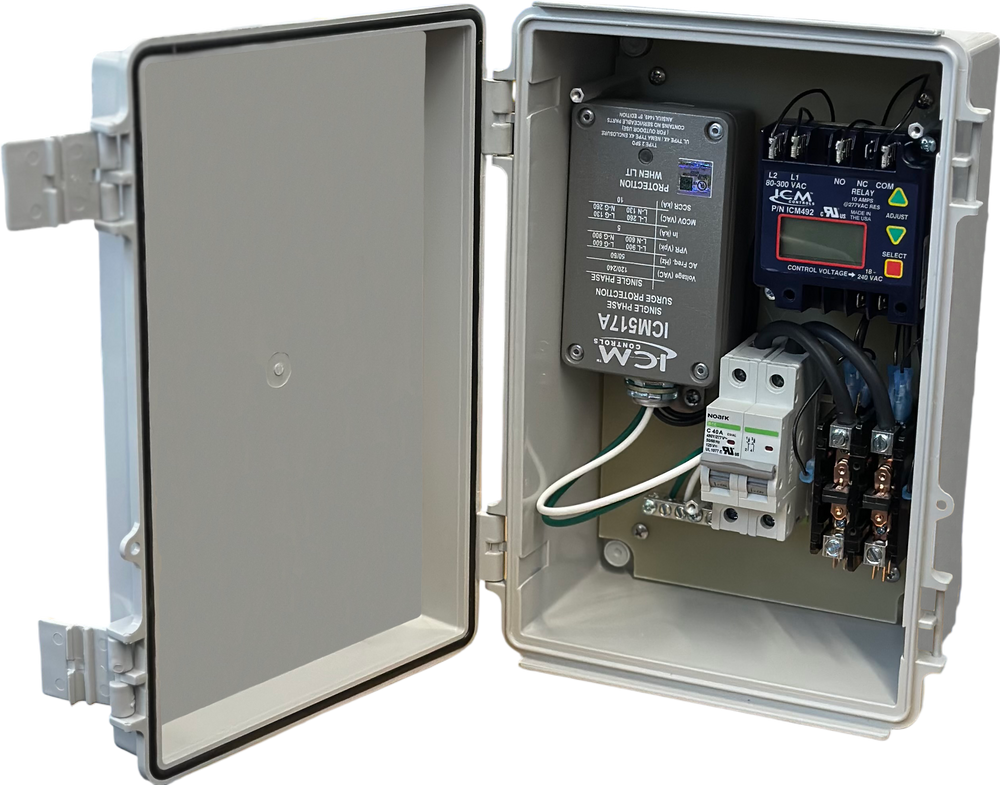

The Sentry 3N1 combines the benefits of a ICM517A single phase surge protective device, and an ICM492 single phase voltage monitor while incorporating a disconnect breaker into one easy to install solution. It provides techs and homeowners a convenient way to break the power, protect against power surges and over/under voltage issues that can cause damage to circuit boards and motors in residential and commercial single phase 240 VAC HVAC/R equipment.
Brand new in box
Limited lifetime product warranty
Ships from TX
Authorized ICM Controls dealer
Features
- All components are pre-wired for 240 volts
- Modular design with field replaceable components
- Field programmable Voltage Monitor
- 5-fault memory for Voltage Monitor
- Easy-view backlit, LCD digital display on Voltage Monitor
- Protects against over and under voltage, and rapid short cycling
- Separate 40amp Contactor, fully disconnects from the service
- 40amp internal breaker allows for easy switching of power on and off
- Superior TMOV technology provides safe and reliable surge protection
- Built to withstand the high impact of a major surge event
- Proudly Assembled in America
- NEMA type 4X Rating
- UL Listed: ICM517A – E347279
- UL Rated: ICM492 – E53944
Specifications
| Model | SENTRY-3N1 |
| Maximum Surge Current | 100,000 amps |
| Protection Modes | L-L, L-G |
| User Adjustable Settings | |
| Voltage Set Point | 95-280 VAC |
| Anti-Short Cycle Time Delay | 0-720 seconds |
| Over/Under Voltage Setting | 5-25% |
| Response Time | 0.1 - 10 seconds |
| Inputs | |
| Line Voltage | 240 VAC |
| Frequency | 50/60 Hz |
| Breaker | 40 amp at 240 VAC |
| Outputs | |
| Type | Contactor |
| 2-Pole Contact Ratings | 40A FLA, 240A LRA |
| Dimensions | 7.97" x 5.18" x 11.95" |
Package Contents
ICM Controls Sentry 3N1
Installation Manual
Warranty
This item comes with a limited lifetime product warranty.
